Product Display

产品展示

▄▄

植物提取浓缩回收干燥系列

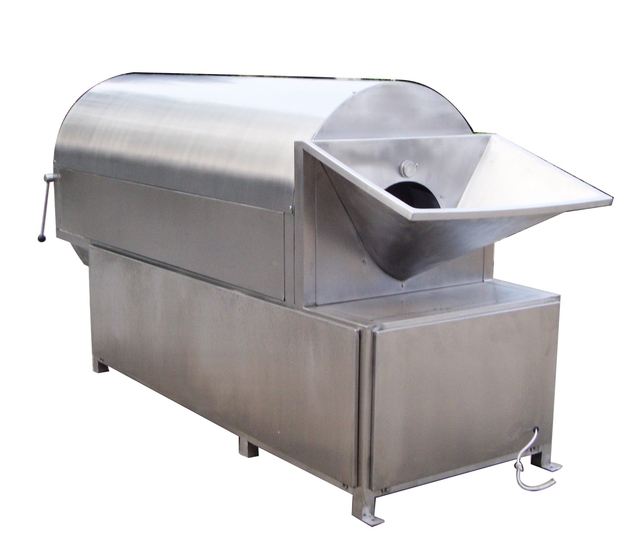

XY 型洗药机

XY Type medicine-washing machine

▄▄

icon2产品详情

主要用途(Main Usage)

  • 本产品对中草药、蔬菜、水果的表面泥沙、杂质、细菌,具有良好的洗净作用,适用于直径3毫米以上的根茎类、皮类、种子、果实类、藤木类、贝壳类、矿物类,大部份菌藻类的清洗,是大小饮片厂、中药厂、理想的洗净设备。

  • 该机采用整体旋转式,进料口、出料口、筒体全部采用不锈钢板制成,配有高压水泵喷淋,水源可选用自来水源、直接水源二用,一次冲洗,采用内螺导板推进物料,能连续生产,自动出料,对特殊品种,可反复倒顺洗净。

  • This equipment effectively removes surface sand, impurities, and foreign matter from Chinese herbal medicines, vegetables, and fruits. It is suitable for cleaning materials with a diameter of over 3 mm, including roots, barks, seeds, fruits, vines, shells, minerals, and most algal substances. It serves as a practical washing solution for pharmaceutical factories and decoction piece manufacturers of various scales.

  • The machine adopts an integrated rotary drum structure. The feed inlet, discharge outlet, and drum body are fully constructed of stainless steel plate. Equipped with high-pressure spray nozzles, it supports dual water sources (tap water or direct water supply). Utilizing internal spiral guide plates for continuous propulsion and automatic discharging, the system allows for one-pass cleaning. For specific materials requiring extra care, the rotation direction can be reversed for thorough washing.

技术参数(technical data):

参数

型号

洗涤量

(kg/h)

桶体转数

(r/min)

电机功率

(KW)

电压

(V)

机器重量

(kg)

冲洗时间

(S)

外形尺寸

(mm)

XY-500

100~300

12

1.1

380

600

60~100

2700X700X1150

XY-720

300~500

10

2.2

380

700

60~100

2800X850X1300

XY-900

800~1000

8

3

380

900

60~100

3150X1200X1850
